I am currently working on a greenfield project as an engineer, and I realized how important pipe volume calculations are in practice. After pipe erection, we need to carry out hydrotests. The first step is to calculate the exact volume of the pipeline to determine how much water will be required.
Situations like this make it clear that pipe volume is not just a design figure but a practical requirement in plant activities, and by this, Chemical Tweak has prepared a pipe volume calculator.

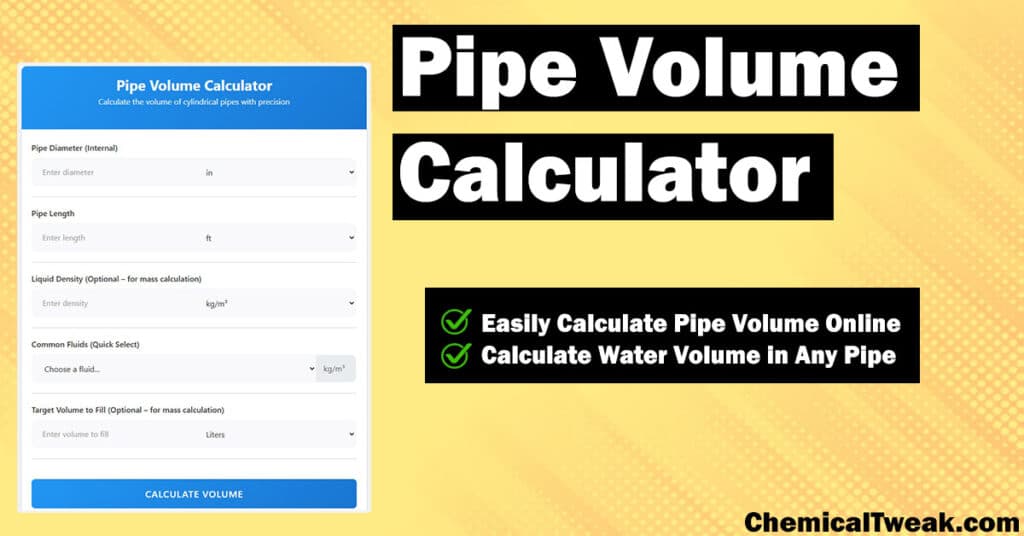

Pipe Volume Calculator
Calculate the volume of cylindrical pipes with precision
Formulas Used
Where:
• V = Volume of the pipe • π = Pi (≈ 3.14159) • r = Radius (diameter ÷ 2) • L = Length • ρ = Density of liquid
Note: Mass calculation is optional and requires liquid density input.
How to Use This Calculator
- Enter the internal pipe diameter and select the unit.
- Enter the pipe length and its unit.
- (Optional) Add liquid density if you want the mass. You can also select a common fluid from the list.
- (Optional) Enter a target volume if you only want to fill part of the pipe.
- Click Calculate Volume or press Enter.
The calculator will show pipe volume in cubic inches, cubic feet, liters, and US gallons. If density is given, it will also display the liquid mass.
If you need help converting unit, you can check our Unit Conversion Calculator. We have also posted a downloadable PDF of units
How to calculate Pipe volume?
Pipe volume is calculated the same way as the volume of a cylinder. Using the internal diameter and pipe length

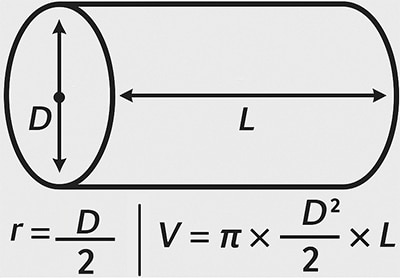

V = π × (D/2)² × L
Where, V is the volume
D is the internal diameter of the pipe
L is the length of the pipe
Use the internal diameter of the pipe, as that represents the actual space available for fluid.
Example of - Calculate Water Volume in a Pipe
A hydrotest is planned for a pipeline with an internal diameter of 6 inches and a length of 20 feet. Water will be used for the test. How much volume of water will be required to fill the line?
Radius = D/2 = 6/2 = 3 inches
Volume = π × (3)² × 240 (as 20 ft = 240 in)
V = π × (3)² × 240
V = 3.1416 × 9 × 240 = 6785 in³
Now we need to convert the unit,
6785 in³ ÷ 1728 = 3.93 ft³
3.93 × 28.316 = 111 liters (approx.)
When Do You Need to Calculate Pipe Volume?
Engineers mostly use to calculate pipe volume during the commissioning and design phase. I have personally used this for hydrotesting and passivating pipes.
Chemical dosing: Calculating the right amount of treatment chemical, inhibitor, or additive for the liquid inside the pipe. eg. Passivation
Hydrotesting: Working out the amount of water required for pressure testing new or modified pipelines.
Flushing and cleaning: Estimating the amount of solvent, cleaning solution, or water required to clean out a line.
Start-up and shutdown: Accounting for the liquid that remains in the line (hold-up volume) during charging or discharging.
Inventory and mass balance: Keeping track of how much liquid is present in the system for process calculations.
Emergency planning: Estimating how much liquid could escape if a line leaks or fails.
For weight-related calculations, you can also check the pipe weight calculation chart from Engineering Toolbox.
FAQ
1. How to calculate water volume in a pipe?
Pipe is cylindrical Water volume in a pipe is calculated using the cylinder formula.
2 What is the formula for the volume of a pipe?
The formula for the volume of a pipe is V = π × (D/2)² × L, where V is volume, D is the internal diameter, and L is the length of the pipe.
3. How to calculate liquid volume in a pipe?
Measure the internal diameter and length of the pipe, find the cross-sectional area, and multiply it by the length to get the liquid volume.
3 How to calculate the diameter of a pipe from its volume?
To calculate pipe diameter from volume, you need the pipe length. Use the formula D = √(4V / πL), Where V is the volume, D is the internal diameter, and L is the length of the pipe.
